Properly disassemble your Razer Fujin to prevent damage while being stored or transported.
Tools needed:
-
Rubber mallet
-
Hex key “L”
-
Microfiber cloth
-
Penetrating lubricant
Step-by-step process on how to disassemble the Razer Fujin
Important: Put the chair over a smooth work surface to protect it from scratch and any other types of damage during the process.
-

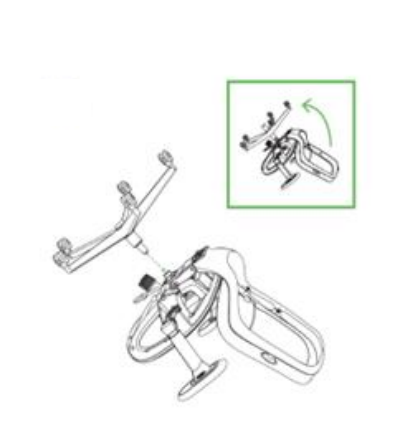

Remove the piston and star base from the seat.
-

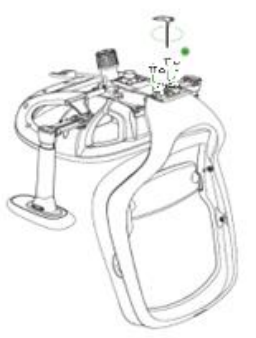

Unfasten the screws from the seat base using the hex key.
-

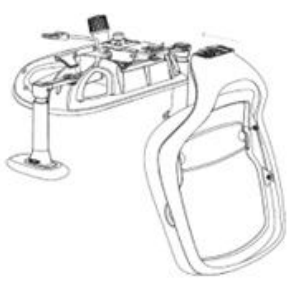

Detach the backrest.
-
Fasten the screws into the backrest.
-

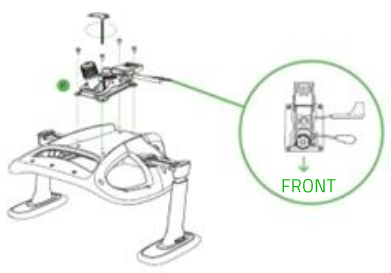

Remove the chair mechanisms from the seat base.
-
Unfasten the screws that connect the armrest and the seat base, and detach the armrests from it.
-
Separate the cylinder cover from the cylinder.
-
Apply penetrating lubricant between the gas lift cylinder and wheelbase. Leave it for five minutes.
-
Dislodge the wheelbase by pulling it while hitting the cylinder with the rubber mallet wrapped in a microfiber cloth.
Important: Make sure you hit only the outer rim of the gas lift cylinder and avoid using too much force when hammering.
-
Grab the base then pull out the caster wheels.
Note: Apply some penetrating lubricant between the wheel and wheelbase if the caster wheels are difficult to pull out.
-
Put all the disassembled parts inside the box accordingly.
