Important: While the connector plug may appear the same, not all power adaptors will necessarily work with every device. For example, just because Razer Blade 15" Advanced (2020) is originally shipped with a 230 W power adaptor, it cannot be assumed that it will definitely work with a 280 or 330W power adaptor that has the same plug.
If the device and the power adapter are not designed to work together, a "more power required" message will appear in Razer Synapse, and the system will not perform optimally. See Can I use lower-watt, third-party, or power adapters of older models for my Razer Blade? for more details.
For Razer Blade models that support Power Delivery via USB-C, a compatible USB-C charger can be used, but charging will be slower. See My Razer Blade is not properly charging from a docking station, USB-C, or a third-party power adapter for more details.
You can check out replacement power adapters or chargers at RazerStore.
Select a Razer Blade model:
Compatible Adapter Information
Description: 400 W Power Adapter
Compatible Adapter Information

Description: 280 W Power Adapter
Compatible Adapter Information

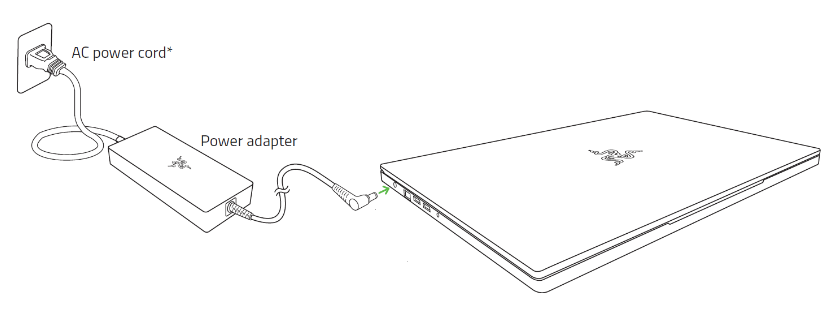

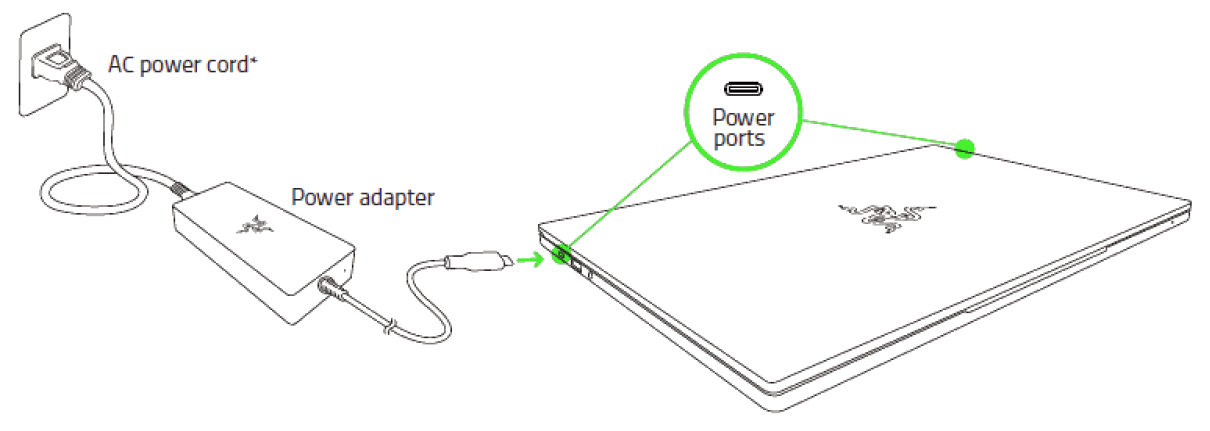

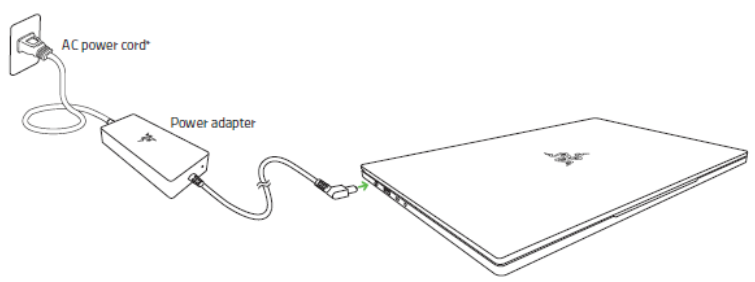

Device layout:

Model number: RC30-04840200
Description: 330 W Power Adapter
Net weight: 840 g
Dimension:
- 180 mm (Length)
- 75 mm (Width)
- 24.5 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 16.92 A
- Total: 330 W
Compatible Adapter Information

Device layout:

Model number: RC30-04230300
Description: 280 W Power Adapter
Net weight: 0.81 kg / 1.77 lbs
Dimension:
- 6.44 in / 163.5 mm (Length)
- 2.76 in / 70 mm (Width)
- 0.96 in / 24.5 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: <3.6 A (C14)
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 14.4 A
- Total: 280 W
Compatible Adapter Information

Device layout:

Model number: RC30-04840200
Description: 330 W Power Adapter
Net weight: 840 g
Dimension:
- 180 mm (Length)
- 75 mm (Width)
- 24.5 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 16.92 A
- Total: 330 W
Compatible Adapter Information

Device layout:

Model number: RC30-04230300
Description: 280 W Power Adapter
Net weight: 0.81 kg / 1.77 lbs
Dimension:
- 6.44 in / 163.5 mm (Length)
- 2.76 in / 70 mm (Width)
- 0.96 in / 24.5 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: <3.6 A (C14)
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 14.4 A
- Total: 280 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Important: Ensure EC is up to date.
Compatible Adapter Information

Device layout:

Model number: RC30-04840200
Description: 330 W Power Adapter
Net weight: 840 g
Dimension:
- 180 mm (Length)
- 75 mm (Width)
- 24.5 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 16.92 A
- Total: 330 W
Compatible Adapter Information

Device layout:

Model number: RC30-04230200
Description: 280 W Power Adapter
Net weight: 810 g
Dimension:
- 163.5 mm (Length)
- 70 mm (Width)
- 24.5 mm(Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 14.36 A
- Total: 280 W
Important: Ensure EC is up to date.
Compatible Adapter Information

Device layout:

Model number: RC30-04840200
Description: 330 W Power Adapter
Net weight: 840 g
Dimension:
- 180 mm (Length)
- 75 mm (Width)
- 24.5 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 16.92 A
- Total: 330 W
Compatible Adapter Information

Device layout:

Model number: RC30-04230200
Description: 280 W Power Adapter
Net weight: 810 g
Dimension:
- 163.5 mm (Length)
- 70 mm (Width)
- 24.5 mm(Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 14.36 A
- Total: 280 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Device layout:

Model number: RC30-04230200
Description: 280 W Power Adapter
Net weight: 810 g
Dimension:
- 163.5 mm (Length)
- 70 mm (Width)
- 24.5 mm(Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 4 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 14.36 A
- Total: 280 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Description: 230 W Power Adapter
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-03510300
Description: 180 W Power Adapter
Net weight: 420 g / 0.92 lbs
Dimension:
- 152 mm (Length)
- 73 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 2.34 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 9.23 A
- Total: 180 W
Note: The two 180 W Power Adapter variants (RC30-02700300 and RC30-03510300) technically can be used interchangeably (no certification yet). Also, this 180 W power adapter works with models under 165 W.
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02390100
Description: 65 W Power Adapter
Net weight: 200 g / 0.44 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 3.25 A
- Total: 65 W
Compatible Adapter Information

Device layout:

Model number: RC30-03100200
Description: 100 W Power Adapter
Net weight: 470 g / 1.04 lbs
Dimension:
- 5.11 in / 130 mm (Length)
- 2.32 in / 59 mm (Width)
- 1.10 in / 28 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: <1.5 A
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 5 V / 9 V / 15 V / 20 V
- Output current: 100 W & 3 A / 20 V / 5 A
- Total: 100 W
Compatible Adapter Information

Device layout:

Model number: RC30-03100200
Description: 100 W Power Adapter
Net weight: 470 g / 1.04 lbs
Dimension:
- 5.11 in / 130 mm (Length)
- 2.32 in / 59 mm (Width)
- 1.10 in / 28 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: <1.5 A
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 5 V / 9 V / 15 V / 20 V
- Output current: 100 W & 3 A / 20 V / 5 A
- Total: 100 W
Compatible Adapter Information

Device layout:

Model number: RC30-02380200
Description: 200 W Power Adapter
Net weight: 650 g / 1.4 lbs
Dimension:
- 157 mm (Length)
- 65 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 10.26 A
- Total: 200 W

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02380200
Description: 200 W Power Adapter
Net weight: 650 g / 1.4 lbs
Dimension:
- 157 mm (Length)
- 65 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 10.26 A
- Total: 200 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02380200
Description: 200 W Power Adapter
Net weight: 650 g / 1.4 lbs
Dimension:
- 157 mm (Length)
- 65 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 10.26 A
- Total: 200 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Description: 200 W Power Adapter

Device layout:

Model number: RC30-02380200
Description: 200 W Power Adapter
Net weight: 650 g / 1.4 lbs
Dimension:
- 157 mm (Length)
- 65 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 10.26 A
- Total: 200 W
Compatible Adapter Information

Device layout:

Model number: RC30-03100200
Description: 100 W Power Adapter
Net weight: 470 g / 1.04 lbs
Dimension:
- 5.11 in / 130 mm (Length)
- 2.32 in / 59 mm (Width)
- 1.10 in / 28 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: <1.5 A
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 5 V / 9 V / 15 V / 20 V
- Output current: 100 W & 3 A / 20 V / 5 A
- Total: 100 W
Compatible Adapter Information

Device layout:

Model number: RC30-03100200
Description: 100 W Power Adapter
Net weight: 470 g / 1.04 lbs
Dimension:
- 5.11 in / 130 mm (Length)
- 2.32 in / 59 mm (Width)
- 1.10 in / 28 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: <1.5 A
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 5 V / 9 V / 15 V / 20 V
- Output current: 100 W & 3 A / 20 V / 5 A
- Total: 100 W
Compatible Adapter Information

Device layout:

Model number: RC30-02390100
Description: 65 W Power Adapter
Net weight: 200 g / 0.44 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 3.25 A
- Total: 65 W
Compatible Adapter Information

Device layout:

Model number: RC30-02480100
Description: 230 W Power Adapter
Net weight: 690 g / 1.5 lbs
Dimension:
- 170 mm (Length)
- 71 mm (Width)
- 24.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3.6 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 11.8 A
- Total: 230 W
Compatible Adapter Information

Device layout:

Model number: RC30-02380200
Description: 200 W Power Adapter
Net weight: 650 g / 1.4 lbs
Dimension:
- 157 mm (Length)
- 65 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 3 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 10.26 A
- Total: 200 W
Compatible Adapter Information

Device layout:

Model number: RC30-02700300
Description: 180 W Power Adapter
Net weight: 420 g / 0.92 lbs
Dimension:
- 152 mm (Length)
- 73 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 2.34 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 9.23 A
- Total: 180 W
Note: The two 180 W Power Adapter variants (RC30-02700300 and RC30-03510300) technically can be used interchangeably (no certification yet).
Compatible Adapter Information

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W

Device layout:

Model number: RC30-02700300
Description: 180 W Power Adapter
Net weight: 420 g / 0.92 lbs
Dimension:
- 152 mm (Length)
- 73 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 2.34 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 9.23 A
- Total: 180 W
Note: The two 180 W Power Adapter variants (RC30-02700300 and RC30-03510300) technically can be used interchangeably (no certification yet).
Compatible Adapter Information

Device layout:

Model number: RC30-01660100
Description: 250 W Power Adapter
Net weight: 680 g
Dimension:
- 7.64 in / 194 mm (Length)
- 3.39 in / 86 mm (Width)
- 0.67 in / 17 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 3.4 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 13.15 A
- Total: 250 W
Important: Untested with 180 W Power Adapter (RC30-02700300)
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W

Device layout:

Model number: RC30-02700300
Description: 180 W Power Adapter
Net weight: 420 g / 0.92 lbs
Dimension:
- 152 mm (Length)
- 73 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 2.34 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 9.23 A
- Total: 180 W
Note: The two 180 W Power Adapter variants (RC30-02700300 and RC30-03510300) technically can be used interchangeably (no certification yet).
Compatible Adapter Information

Device layout:

Model number: RC30-02390100
Description: 65 W Power Adapter
Net weight: 200 g / 0.44 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 3.25 A
- Total: 65 W
Compatible Adapter Information

Device layout:

Model number: RC30-01680100
Description: 45 W Power Adapter
Net weight: 190 g / 0.40 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 2.25 A
- Total: 45 W

Device layout:

Model number: RC30-02390100
Description: 65 W Power Adapter
Net weight: 200 g / 0.44 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 3.25 A
- Total: 65 W
Compatible Adapter Information

Device layout:

Model number: RC30-01660100
Description: 250 W Power Adapter
Net weight: 680 g
Dimension:
- 7.64 in / 194 mm (Length)
- 3.39 in / 86 mm (Width)
- 0.67 in / 17 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 3.4 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 13.15 A
- Total: 250 W
Important: Untested with 180 W Power Adapter (RC30-02700300)
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W

Device layout:

Model number: RC30-02700300
Description: 180 W Power Adapter
Net weight: 420 g / 0.92 lbs
Dimension:
- 152 mm (Length)
- 73 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 2.34 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 9.23 A
- Total: 180 W
Note: The two 180 W Power Adapter variants (RC30-02700300 and RC30-03510300) technically can be used interchangeably (no certification yet).
Important: Untested with 180 W Power Adapter (RC30-02700300)
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W

Device layout:

Model number: RC30-02700300
Description: 180 W Power Adapter
Net weight: 420 g / 0.92 lbs
Dimension:
- 152 mm (Length)
- 73 mm (Width)
- 23.5 mm (Height)
AC input:
- Input Voltage range: 100 V - 240 V
- Input current range: 2.34 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.5 V
- Output current: 9.23 A
- Total: 180 W
Note: The two 180 W Power Adapter variants (RC30-02700300 and RC30-03510300) technically can be used interchangeably (no certification yet).
Compatible Adapter Information

Device layout:

Model number: RC30-01680100
Description: 45 W Power Adapter
Net weight: 190 g / 0.40 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 2.25 A
- Total: 45 W

Device layout:

Model number: RC30-02390100
Description: 65 W Power Adapter
Net weight: 200 g / 0.44 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 3.25 A
- Total: 65 W
Compatible Adapter Information

Device layout:

Model number: RC30-01680100
Description: 45 W Power Adapter
Net weight: 190 g / 0.40 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 2.25 A
- Total: 45 W

Device layout:

Model number: RC30-02390100
Description: 65 W Power Adapter
Net weight: 200 g / 0.44 lbs
Dimension:
- 4.25 in / 108 mm (Length)
- 1.42 in / 36 mm (Width)
- 1.06 in / 27 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 20 V
- Output current: 3.25 A
- Total: 65 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W
Compatible Adapter Information

Device layout:

Model number: RC30-00990100
Description: 150 W Power Adapter
Net weight: 340 g / 0.75 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19 V
- Output current: 7.9 A
- Total: 150 W

Device layout:

Model number: RC30-01650100
Description: 165 W Power Adapter
Net weight: 430 g / 0.95 lbs
Dimension:
- 5.9 in / 150 mm (Length)
- 2.36 in / 60 mm (Width)
- 0.87 in / 22 mm (Height)
AC input:
- Input voltage range: 100 V - 240 V
- Input current range: 2.5 A maximum
- Input frequency: 50 - 60 Hz
DC output:
- Output voltage: 19.8 V
- Output current: 8.33 A
- Total: 165 W
