Tips to help you get started
To build the ultimate gaming desktop, it begins with a frame that can support the performance within. Meet the Razer Tomahawk ATX – a mid-tower metal gaming chassis that exudes both form and function, equipped with premium features to accommodate your idea of a perfect rig, whatever it may be.

Device Layout

- USB Type C port (up to 3.2 Gen 2)
- 3.5mm audio jack
- 3.5mm mic jack
- Power Button
- Reset Button
- USB Type A ports (up to 3.2 Gen 1)
- Detachable swivel glass doors
- 120mm fan
- Inner flip panel
- Underglow lighting Powered by Razer Chroma RGB
- Removable HDD/SSD trays x3
- Movable drive rack
- Detachable front panel

- Screws for motherboard and 2.5" SSD mount x29
- Screws for PSU mount x4
- Screws for 3.5" HDD mount x12
- Cable ties x10
- Tool for standoff bolt
- Screws for fan mount x8
- Hook and loop straps x2
Full Technical Specifications
| Category | Specification |
|---|---|
|
Chassis Form Factor |
Mid-Tower |
|
Supported Motherboards |
|
|
Case Material |
SPCC Steel (0.8 mm) Thick and All Tempered Glass side panels |
|
# of Expansion Slots |
7 Expansion Slots |
|
# of Supported Drives |
|
|
Radiator Compatibility |
Up to 360 mm |
|
Maximum CPU Cooler Height |
Up to 176 mm |
|
Maximum GPU Length |
Up to 384 mm |
|
Front Panel I/O |
|
|
Razer Chroma™ Support |
Razer Chroma™ Underglow |
|
Case Dimensions |
19.47 in / 494.6 mm (Height) x 9.26 in / 235.4 mm (Width) x 18.70 in / 475 mm (Depth) |
|
Weight |
29.76 lbs / 13.5 kg |
How To

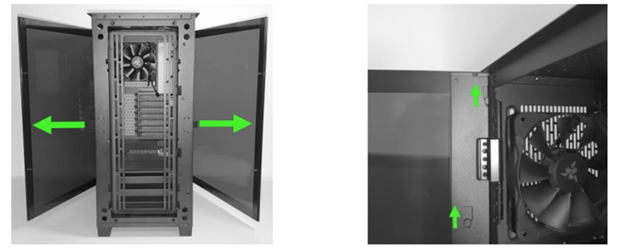

How do I remove the glass panels from the Razer gaming chassis?
Open both detachable swivel glass doors then gently lift up to remove them.

How do I remove the HDD tray from the Razer gaming chassis?
Push the fastener to unlock and gently pull out the tray.

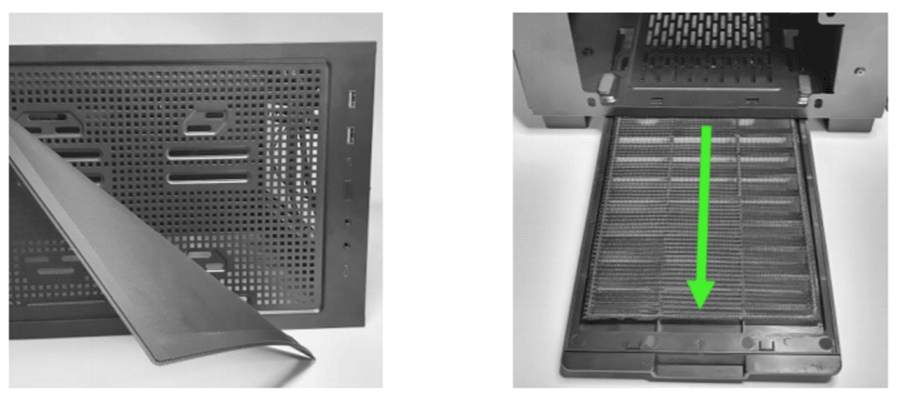

How do I clean the dust filters on the Razer gaming chassis?
There are 2 dust filters located at the top and the bottom of the chassis.
-
Remove the filters as shown below.

-
Wash the filters with clean water.
-
Wipe them with a dry cloth.
-
Reinstall the dust filters.
Note: Keep your chassis at an optimal temperature by cleaning these dust filters as often as possible.
General Information
What is the difference between the two Razer gaming chassis models?
The Razer gaming chassis ATX variant is a mid-tower designed for users that want the ultimate eSports gaming desktop and requires more expansion slots while the Mini-ITX variant offers a simplistic design for those that are in search of a smaller form factor. Both are designed for fast and easy PC builds with easy access to magnetic doors and filters.

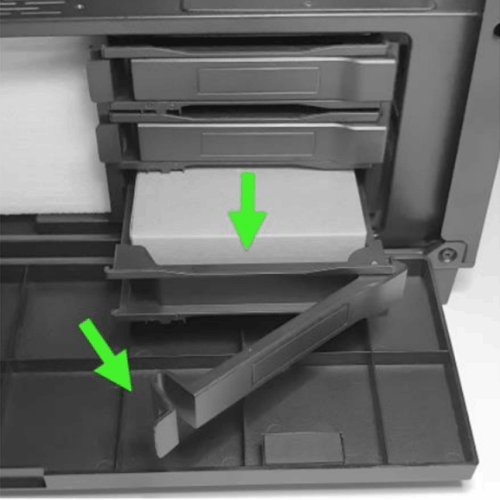

Where can I find the accessories for the Razer gaming chassis?
The accessories pack can be found inside the bottom removable HDD/SSD drive tray.

Does the Razer gaming chassis support water cooling?
Yes. The Razer gaming chassis ATX variant has multiple mounting options on the front and top sides for liquid or air cooling.
