How to set up the Razer Chroma Light Strip Set

Updated: 23-Sep-2025 | Answer ID: 5677
This article shows how to set up the Razer Chroma Light Strip Set.

  1. Insert the controller to LED strip connector cables to the 3-pin 5V ports of the ARGB controller.

  2. Plug the LED strips into each cable.

    Diagram on inserting the LED strip connector cables to the 3-pin 5V ports of the ARGB controller

  3. Enclose all LED strip connections using the included protector clips.

    Diagram showing the LED strip connections being enclosed using the protector clips

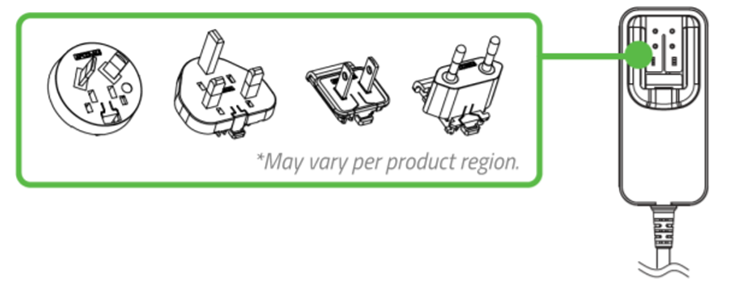

  4. Attach the appropriate AC plug for your region to the power adapter.

    Illustration showing the different AC plug per region

  5. Connect the power adapter to the ARGB controller and plug it into a power outlet.

    Diagram showing the power adapter being connected to the ARGB controller

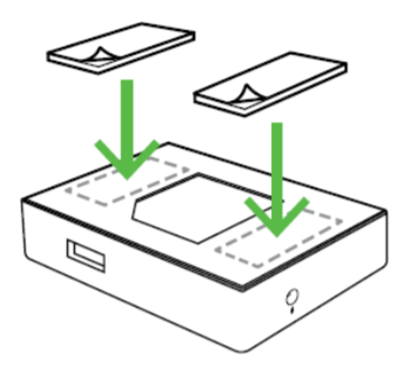

  6. Use the double-sided adhesive tapes to fasten the ARGB controller on any clean, dry, and flat surface.

    Illustration showing the double-sided adhesive tapes to fasten the ARGB controller on a flat surface

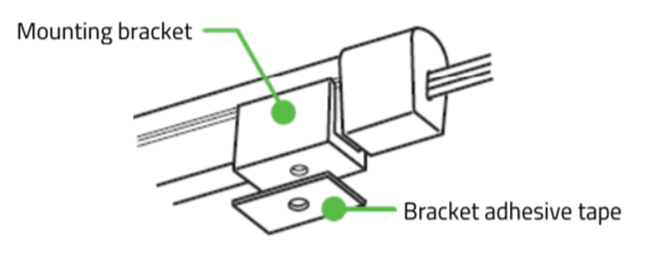

  7. To mount LED strips in your setup, insert the LED strip into the mounting bracket and attach it to surfaces using bracket adhesive tape.

    Illustration of the mounting bracket
