Razer Tomahawk Mini-ITX Case | RC21-01400 Support & FAQs

Updated: 28-Feb-2026 | Article ID: 3836

To build the ultimate gaming desktop, it begins with a frame that can support the performance within. Meet the Razer Tomahawk Mini-ITX – a Mini-ITX metal gaming chassis that exudes both form and function, equipped with premium features to accommodate your idea of a perfect rig, whatever it may be.

Razer Tomahawk Mini-ITX Case | RC21-01400 Product Image



Device Layout



Razer Tomahawk Mini-ITX Case | RC21-01400 Case Device Layout

  1. USB Type C port (up to 3.2 Gen 2)
  2. 3.5mm mic jack
  3. 3.5mm audio jack
  4. Power Button
  5. Reset Button
  1. USB Type A ports (up to 3.2 Gen 1)
  2. Detachable top panel
  3. Detachable swivel glass doors
  4. Detachable front panel
  5. Underglow lighting Powered by Razer Chroma RGB

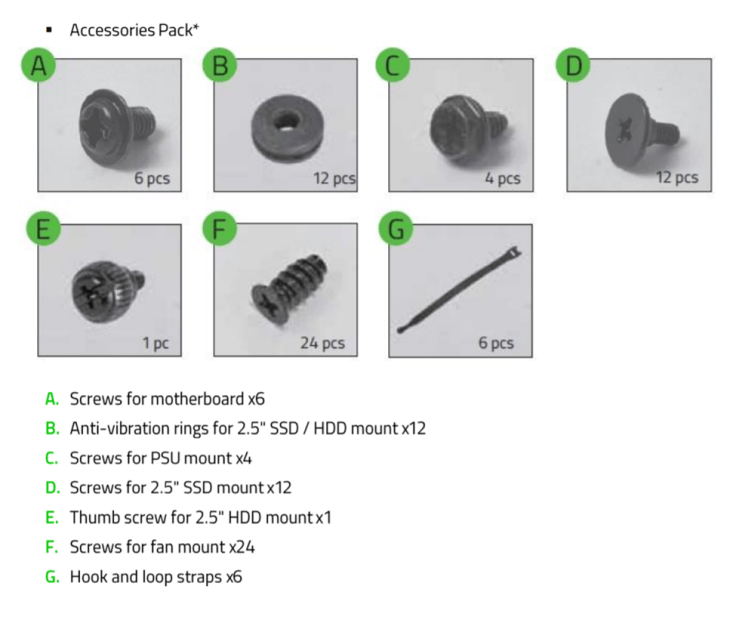

Razer Tomahawk Mini-ITX Case | RC21-01400 Accessories Device Layout

  1. Screws for motherboard x6
  2. Anti-vibration rings for 2.5" SSD/HDD mount x12
  3. Screws for PSU mount x4
  4. Screws for 2.5" SSD mount x12
  5. Thumb screw for 2.5" HDD mountx1
  6. Screws for fan mount x24
  7. Hook and loop straps x6



Full Technical Specifications



Category Specification
Variation Razer Tomahawk Mini-ITX Case
Chassis Form Factor Mini-ITX
Supported Motherboards
  • Mini-ITX
  • Mini-DTX
Case Material SPCC Steel (0.8 mm) Thick and All Tempered Glass side panels
# of Expansion Slots 3 Expansion Slots
# of Supported Drives 3 x 2.5 in SSD
Radiator Compatibility Up to 240mm (Top)
Maximum CPU Cooler Height Up to 165mm
Maximum GPU Length Up to 320mm
Maximum PSU Length SFX, SFX-L
Front Panel I/O
  • 2x USB3.2 Gen 1 Type-A Ports
  • 1x USB3.2 Gen 2 Type-C Port
  • 1x Dedicated Microphone Port
  • 1x Microphone and Headphone Combo Port
  • 1x Power Button
  • 1x Reset Button
Razer Chroma™ Support Razer Chroma™ Underglow
Case Dimensions 12.66 in / 321.5 mm (Height) x 8.12 in / 206.2 mm (Width) x 14.46 in / 367.2 mm (Depth)
Weight 12.13 lbs / 5.5 kg

How To

How do I clean the dust filters on the Razer gaming chassis?

There is a dust filter located at the front of the inner chassis.

  1. Remove the filter as shown below.

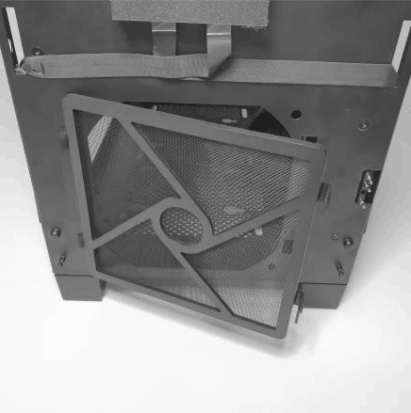

    Close shot of the Razer Tomahawk Mini-ITX Case filter

  2. Wash the filter with clean water.

  3. Wipe it with a dry cloth.

  4. Reinstall the dust filter.

Note: Keep your chassis at an optimal temperature by cleaning the dust filter as often as possible.

General Information

What is the difference between the two Razer gaming chassis models?

The Razer gaming chassis ATX variant is a mid-tower designed for users that want the ultimate eSports gaming desktop and requires more expansion slots while the Razer gaming chassis Mini-ITX variant offers a simplistic design for those that are in search of a smaller form factor. Both are designed for fast and easy PC builds with easy access to magnetic doors and filters.

Where can I find the accessories for the Razer gaming chassis?

The accessories pack can be found in the hard drive mount as shown below.

Close shot of the hard drive mount containing the accessories of the Razer Tomahawk Mini-ITX Case

Does the Razer gaming chassis support water cooling?

Yes. The Razer gaming chassis Mini-ITX variant supports mounting options on the top and rear.

  • Top: 240 mm x1 or 120 mm x1

  • Rear: 120 mm x1
