Tips to help you get started
- Important security updates for your Razer laptop
- Get the most out of your system with Razer Synapse
- Configure lighting on your Razer device
You can view the video below for instructions or review a copy of the video transcript.

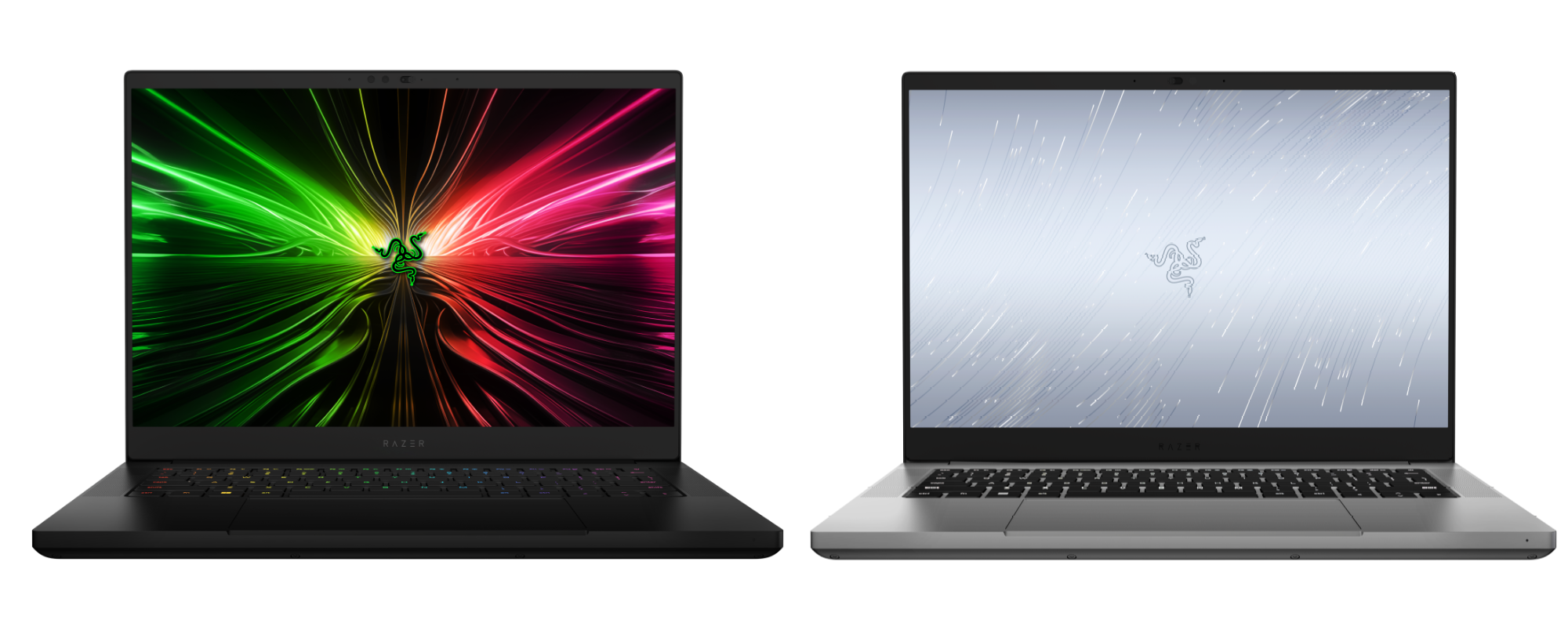

The most portable Razer Blade 14” (2024) | RZ09-0508x has been refreshed with the all-new AMD Ryzen™ 9 8945HS Processor for even faster performance. Equipped with up to an NVIDIA GeForce RTX 4070, a fast 240Hz display, and expandable DDR5 memory, conquer the day your way.

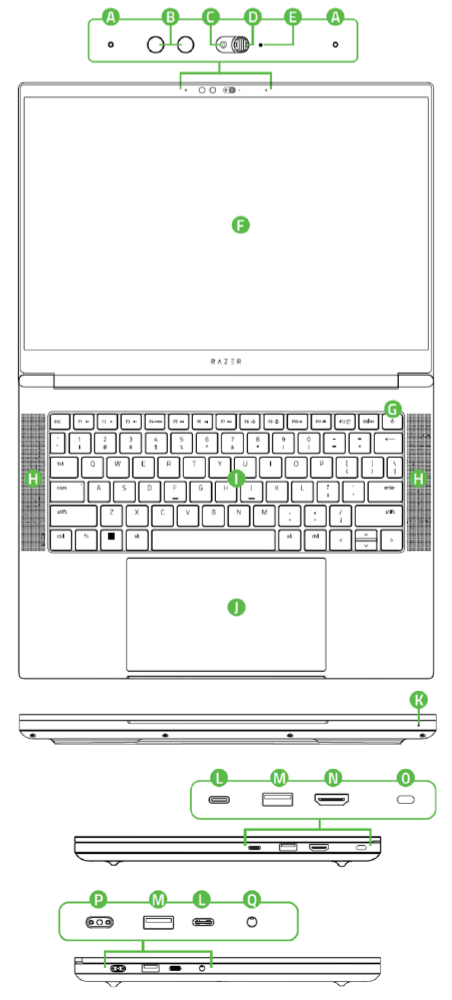

Device Layout
- Array microphone
- Infrared camera or LED
- Full HD webcam
- Built-in camera cover with indicator
- Webcam indicator light
- 14" Anti-glare display
- Power button
- Speakers powered by THX® Spatial Audio
- Per-key RGB powered by Razer Chroma™ N-Key rollover backlit keyboard
*Supports 20 V USB PD 3.0 up to 100 W
- Precision glass touchpad
- Power indicator
- USB 4 ports (Type C)*
- USB 3.2 Gen 2 Type A ports
- HDMI 2.1 port
- Lock slot
- Power port
- 3.5 mm headphone or microphone combo port
Full Technical Specifications
| Category | Specification |
|---|---|
|
Product Number |
RZ09-0508V RZ09-0508X RZ09-05081 |
|
Operating System |
Windows 11 Home |
|
Processor |
AMD Ryzen™ 9 8945HS Processor with Radeon™ 780M Graphics |
|
Graphics |
|
| Name |
NVIDIA® GeForce RTX™ 4060 NVIDIA® GeForce RTX™ 4070 NVIDIA® GeForce RTX™ 4070 |
|
VRAM |
8 GB GDDR6 |
|
Maximum Graphics Power |
Up to 140 W (Up to 115 W Base + Up to 25 W NVIDIA Dynamic Boost) |
|
NVIDIA CUDA® Cores |
3072 4608 4608 |
|
Boost Clock |
Up to 2370 MHz Up to 2175 MHz Up to 2175 MHz |
|
NVIDIA GPU Boost™ |
Yes |
|
NVIDIA Whisper Mode 2.0 |
Yes |
|
NVIDIA Resizable BAR |
Yes |
|
2nd Gen Ray Tracing Cores |
Yes |
|
3rd Gen Tensor Cores |
Yes |
|
VR Ready |
Yes |
|
Display |
|
|
Size |
14” |
|
Resolution |
QHD+ (2560 x 1600) 16:10 |
|
Refresh Rate |
240 Hz |
|
Anti-Glare Matte Finish |
Yes |
|
DCI-P3 |
100% |
|
Response Time |
Sub 3 ms |
|
Brightness (Typical / Max) |
500 nits |
|
IPS-grade |
Yes |
|
Bezel |
4.7 mm |
|
MUX Switch |
Yes |
|
Thermal System |
Vapor Chamber Cooling |
|
Memory |
16 GB DDR5-5600 MHz (Slotted) 32 GB DDR5-5600 MHz (Slotted) 32 GB DDR5-5600 MHz (Slotted) |
|
Storage |
|
|
Installed |
1 TB SSD (M.2 NVMe PCIe 4.0 x4) |
|
Maximum Upgradeable |
NVME or SATA-III, Double Sided, expandable up to 4 TB SSD (M.2 2280) |
|
Communication |
|
|
Webcam |
Windows® Hello built-in IR FHD webcam (1080p) with Privacy Shutter |
|
Input & Output |
|
|
Audio |
|
|
Speakers |
Built-in stereo speakers |
|
Audio Jack |
3.5 mm headphone/microphone combo port |
|
Microphone |
Built-in array microphone |
|
THX® Spatial Audio |
Yes |
|
7.1 Codec Support (via HDMI) |
Yes |
|
Security |
|
|
Additional Features |
|
|
Chassis |
CNC-Milled Aluminum CNC-Milled Aluminum CNC-Milled Aluminum
|
|
Color |
Black with illuminated Razer logo Black with illuminated Razer logo Mercury |
|
Power |
|
|
Battery |
Built-in 68.1 WHr rechargeable lithium-ion polymer battery |
|
Battery Life |
Up to 8 hrs |
|
Battery Warranty |
2-year limited warranty |
|
Power Adapter |
230 W |
|
Dimensions (Approx.) |
|
|
Weight (Approx.) |
4.05 lbs. / 1.84 kg |
|
Keyboard Switch |
1.0 mm travel, Membrane, Linear-feel, 63 g +/- |
|
Warranty |
|
Setting Up
How do I get the latest software and driver updates from Windows?
Ensure you have the latest software, drivers, and security updates for your system. See the answer below for more details.
How do I perform a hard reset on the Razer Blade to allow it to power up?
-
Check for a loose or misaligned power adapter.
-
Verify the power source.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I set up the audio on my Razer Blade for optimal performance?
-
Right-click the “Sound” icon on your System Tray at the bottom right side of your desktop.
-
Select “Troubleshoot sound problems”.
-
Follow the onscreen instructions.
See the answer below for more details:
How do I enable and set up the camera on my Razer Blade?
Ensure that you have the latest software, drivers, and security updates for your system.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I set up the sleep or hibernate mode correctly?
- Make sure your Blade’s BIOS and Embedded Controllers (EC) are updated to the latest version.
- Disable hibernation.
- Disable Fast Startup feature.
- Change power settings.
You can view the video below for instructions or review a copy of the video transcript.
See the answers below for more details.
How do I create and use a system recovery stick for my Razer Blade?
Create a system recovery stick to restore the Razer Blade to its original state to resolve persistent software issues.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I upgrade the storage on my Razer Blade?
Upgrade up to 4 TB SSD.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I reset the Razer Blade to its factory default settings?
This process will remove all data, files, settings, games, and applications. Back up all your data to an external drive before proceeding. See the answer below for more details.
How To
How do I keep my Razer Blade at optimal temperature while gaming?
Improve your gaming experience by following these tips:
-
Clean air vents.
-
Game in a cool environment.
-
Adjust fan speed.
-
Close background programs.
-
Update Windows and drivers.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I restore or load a custom color profile on the Razer Blade?
The Razer Blade 14” (2024) has been calibrated from the factory to display the most optimal range of colors based on the DCI-P3 color gamut. To restore or load a customer color profile you may enable Laptop Panel Factory Calibration in Razer Synapse 3.
How do I check if my Razer Blade supports Modern Standby?
- Press the "Windows" + "R" keys.
- Type “cmd” and click "OK" to open the Command Prompt.
- Type “powercfg /a” without the quotation marks and press "Enter". Your device supports Modern Standby if you see "Standby(S0 Low Power Idle) Network Connected”.
See the answer below for more details.
How do I replace the battery on my Razer Blade?
Razer Blade batteries should only be replaced by an authorized Razer Repair Center. Do not purchase a battery from another vendor as they are at risk of causing battery pack thermal runaway that results in a fire in the system, surrounding furniture, or harm to the user handling the Safety Hazard system.
See the answer below for more details.
How do I enable and use the microphone on my Razer Blade?
Enable the microphone in the Windows 11 Privacy settings.
You can view the video below for instructions or review a copy of the video transcript.
See the answers below for more details.
How do I optimize my Razer Blade to achieve the supported FPS when gaming?
Lower the game’s graphics settings until a playable frame rate is achieved.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I optimize my Razer Blade display for stable and smooth visuals?
Ensure you have the latest software, drivers, and security updates for your system.
You can view the video below for instructions or review a copy of the video transcript.
See the answer below for more details.
How do I clean the Razer Blade?
- Turn off your Razer Blade and unplug your power adapter.
- Disconnect all external devices such as mice, keyboards, or monitors.
- Take a lint-free microfiber cloth and wipe the surface of your laptop gently but thoroughly.
See the answer below for more details.
General Information
Can I use a lower-watt power adapter on my Razer Blade?
Use the power adapter that came with your Razer Blade 14 (2024) to get the highest performance while your Razer Blade is running under heavy load. The Razer Blade 14 RTX 4060 and 4070 models are shipped with a 230 W power adapter.
Can I dual boot, partition, modify, or install other operating systems on my Razer Blade?
Yes. However, the Razer Blade is designed for compatibility with the as-shipped OS. Should you want to install or modify the OS, format the boot drive first then install your OS. Razer Warranty and Support is only available for the as-shipped OS.
How many external monitors am I able to connect to my Razer Blade?
Some Razer Blades, including this model, support up to three external monitors using the available HDMI and USB-C ports. However, results vary depending on the resources required by the external displays.
See the answer below for more details.
Will I overcharge my battery if I leave it plugged in even when it is at 100%?
No. The Razer Blade 14” (2024) has a Battery Health Optimizer feature that you can enable in Razer Synapse 3. When the Battery Health Optimizer is enabled, the battery will stop charging when it has reached the limit specified even though your device is still plugged in. Enabling this feature may cause your battery level to be lower than 100%, but this will protect your battery and prolong your battery life. This will have a 5% increment.
Note: It is highly recommended to cycle the battery every couple of weeks. For tips on how to extend the battery life of your Razer Blade battery, see the answers below:
See the answer below for more details:
Applicable Model:
BIOS updater v1.06
- https://rzr.to/lhc30p | July 2, 2024
- WIFI and Audio Improvement for ACPI and Verb Table
STEP-BY-STEP PROCESS
Before you start
-
Ensure Windows is up to date. See How to get the latest software and driver updates from Windows.
If you just updated Windows, install the "Optional updates" under Settings > Windows Update > Advanced options.
-
Plug the Razer Blade into a wall outlet. Do not let it run on battery alone before proceeding.
-
Save any open documents on your computer.
-
Close all other programs.
-
Download the latest BIOS updater.
Update Process
-
Run the updater.
-
Click “Yes” if the User Account Control window pops up to proceed.
Important: If the Blade Updater window appears with details regarding your current update version and the version that your Razer Blade laptop will be updated to, do not run Windows Update.
-
Click "UPDATE" to initiate the update process.
Note: Control of your mouse and keyboard during the updating process will be lost temporarily. You will not be able to proceed if you already have the latest software installed.
A progress bar will appear indicating the status of the installation process. During installation, you will not be able to access other applications.
The Blade will restart a few times and will automatically boot to Windows once the update is complete.
Important: Do not force restart or shut down the Blade during this process.
